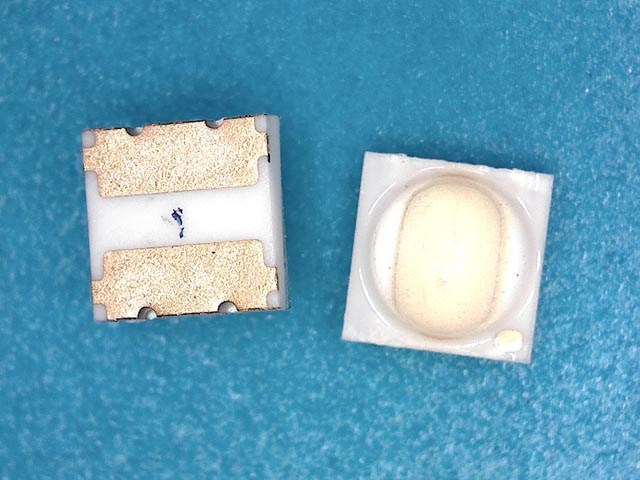

LED podsvit samostatná dioda 2828 0,8W 6V SHARP CORPORAT ION

LED podsvit samostatná dioda 2828 0,8W 6V SHARP CORPORAT ION
2,8 x 2,8 x 1,9 mm

MODEL NAME: GM2BB1ZF2CEM

Manufacturer: SHARP CORPORAT ION

Forward Current (IF): 120mA
Pulse Forward Curren t1 (IFp): 135mA
Reverse Current (IR): 10uA

Reverse Voltage (VR): 5V (mA)

Power Dissipation (PD): 826mW

Operatin Tgemperature (Topr): -30 - + 85 °C

Storage Temperature (Tstg): -40 - + 100 °C

Soldering Temperature (Tsld): Reflow Soldering:260 °C
for 10secs

Hand Soldering:350 °C

for 3secs

Junctio Tnemperature (Tj ): 120°C

Forward Voltage (VF): 6.02-6.88 V( 85mA)

Luminous Flux (LM): 33.11-43.89lm (85mA)

Luminous Intensity ( IV ) : cd (85mA)

Wavelength (nm) : nm 85mA

CIE : x=0.2430 y=0.2110 (85mA)

Color Correlated Temperature (CCT):

CRI : 80

Viewing angle : °



Lead Frame Type LED Package: 2.8×2.8×1.9 mm L×W×H d=mm
