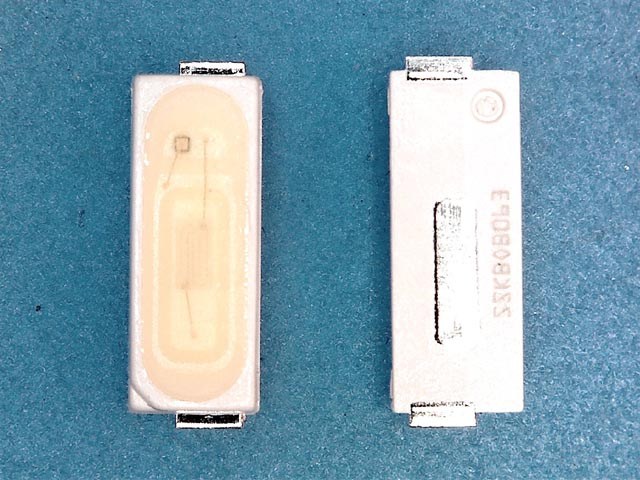

LED podsvit samostatná dioda 5620 3V DS
Kód zboží:
4300031500
EAN:
Dostupnost:
Hlavní sklad:
ihned k odeslání
na prodejně > 25 ks
Cena bez DPH:
21,45 Kč
Cena s DPH:
25,95 Kč
Lze objednat jen 145 ks
MODEL NAME: SSWH5620
Manufacturer: DS
Forward Current (IF): 150mA
Pulse Forward Curren t1 (IFp): 300mA
Reverse Current (IR): uA
Reverse Voltage (VR): V (mA)
Power Dissipation (PD): mW
Operatin Tgemperature (Topr): -40 - +85 °C
Storage Temperature (Tstg): -40 - +100 °C
Soldering Temperature (Tsld): Reflow Soldering:260 °C for 10secs
Hand Soldering: 350 °C for 3secs
Junctio Tnemperature (Tj ): 110°C
Forward Voltage (VF): 3.0-3.3V (110mA)
Luminous Flux (LM): 25lm (110mA)
Luminous Intensity ( IV ): mcd (120mA)
Color Correlated Temperature (CCT): 10000-20000K
CRI : 80°
Viewing angle : 120°
Lead Frame Type LED Package: 5.6×2.0×0.9 mm L×W×H d=mm
